scrapy爬虫框架学习（二）scrapy爬取多级网页信息

1爬取目标：

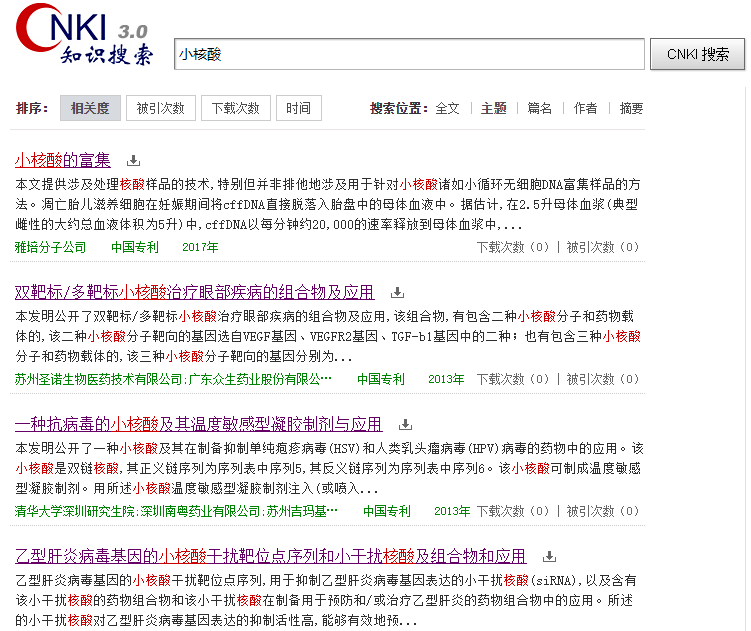

1.1 针对一级页面获取专利详情页的链接信息

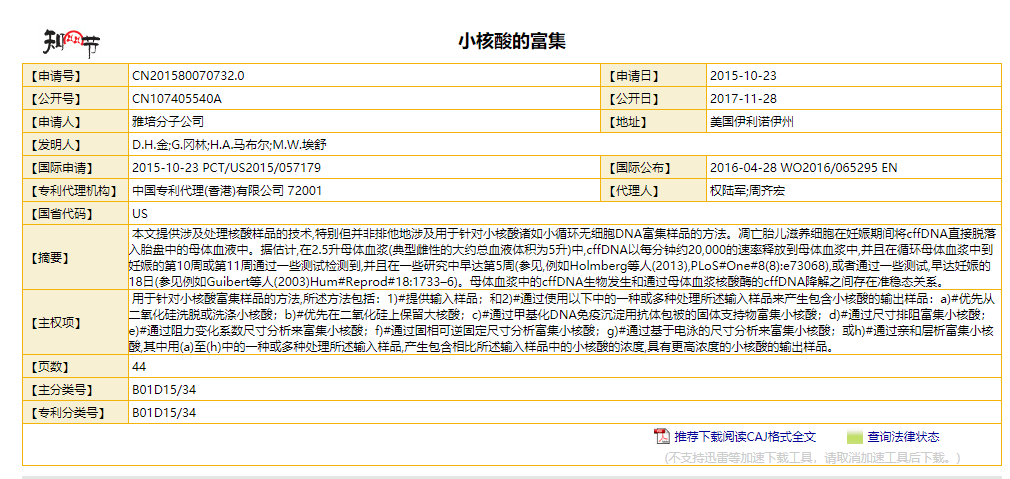

1.2 针对专利详情页进行详细信息

2.项目代码实现

2.1 item.py:定义要收集的详情数据结构

import scrapy

#定义要存储的数据项目 class CnkipatentItem(scrapy.Item): application_number = scrapy.Field() application_date = scrapy.Field() public_number = scrapy.Field() publication_date = scrapy.Field() applicant = scrapy.Field() address = scrapy.Field() common_applicants = scrapy.Field() inventor = scrapy.Field() international_application = scrapy.Field() international_publishing = scrapy.Field() into_the_country_date = scrapy.Field() patent_agencies = scrapy.Field() agents = scrapy.Field() original_application_number = scrapy.Field() province_code = scrapy.Field() summary = scrapy.Field() sovereignty_item = scrapy.Field() page = scrapy.Field() main_classification_number = scrapy.Field() patent_classification_Numbers = scrapy.Field()

2.2 patentSpider.py：完成爬取和解析策略

# -*- coding: utf-8 -*- import scrapy import re #引入定义的item数据结构 from cnkiPatent.items import CnkipatentItem

#继承自spider类 class PatentspiderSpider(scrapy.Spider): name = 'patentSpider'#根据这个名字执行，如果项目中有多个爬虫记得名字要唯一 allowed_domains = ['search.cnki.net'] start_urls = ['http://search.cnki.net/search.aspx?q=%e5%b0%8f%e6%a0%b8%e9%85%b8&rank=relevant&cluster=zyk&val=SCPD'] base_url = 'http://search.cnki.net/'

#response是通过引擎、调度器、下载器工作下载到的的爬取内容 def parse(self, response): #从一级页面爬取专利详情链接 patentTitles = response.xpath('//div[@class="wz_content"]') for patentTitle in patentTitles: patent_url = patentTitle.xpath('.//h3/a/@href').get() #对每一个详情进行解析 yield scrapy.Request(url=patent_url,callback=self.parse_item,dont_filter=True) #获取下一页一级页面 next_url = response.xpath('//div[@class="articles"]/p[@id="page"]' '/a[@class="n"]/@href').get() print(next_url) if next_url is not None: # 后续给的链接因为已经在这个域里面所以没有开头的域名，要加上 next_url = self.base_url + next_url yield scrapy.Request(url=next_url,callback=self.parse)

#返回存储的数据结构 #item = CnkipatentItem() #yield item

def parse_item(self,response): patent_details = response.xpath('//table[@id="box"]//td/text()').extract() item = CnkipatentItem() item['application_number'] = re.sub(r'\xa0','',patent_details[1]) item['application_date'] = re.sub(r'\xa0','',patent_details[3]) item['public_number'] = re.sub(r'\xa0','',patent_details[5]) item['publication_date'] = re.sub(r'\xa0','',patent_details[7]) item['applicant'] = re.sub(r'\xa0','',patent_details[9]) item['address'] = re.sub(r'\xa0','',patent_details[11]) item['common_applicants'] = re.sub(r'\xa0','',patent_details[13]) item['inventor'] = re.sub(r'\xa0','',patent_details[15]) item['international_application'] = re.sub(r'\xa0','',patent_details[17]) item['international_publishing'] = re.sub(r'\xa0','',patent_details[19]) item['into_the_country_date'] = re.sub(r'\xa0','',patent_details[21]) item['patent_agencies'] = re.sub(r'\xa0','',patent_details[23]) item['agents'] = re.sub(r'\xa0','',patent_details[25]) item['original_application_number'] = re.sub(r'\xa0','',patent_details[27]) item['province_code'] = re.sub(r'\xa0','',patent_details[29]) item['summary'] = re.sub(r'\xa0','',patent_details[31]) item['sovereignty_item'] = re.sub(r'\xa0','',patent_details[33]) item['page'] = re.sub(r'\xa0','',patent_details[35]) item['main_classification_number'] = re.sub(r'\xa0','',patent_details[37]) item['patent_classification_Numbers'] = re.sub(r'\xa0','',patent_details[39]) yield item

2.3 pipelines.py：定义存储方法，用json为例

import json import pandas as pd

class CnkipatentPipeline(object): #打开时的操作，例如打开要存储的文件：txt、json等 def open_spider(self,spider): self.file = open('小核酸.json', 'wb')

#将spider中parse函数yield返回来的内容装进item给到这个函数 def process_item(self, item, spider): data = json.dumps(dict(item), ensure_ascii=False, indent=4) + ',' #编码 self.file.write(data.encode('utf-8'))

#关闭spider时的操作，例如关闭要存储的文件 def close_spider(self,spider): self.file.close()

3.得到的数据

仅以一条数据为例

{ "application_number": "CN201210437612.8", "application_date": "2012-11-06", "public_number": "CN102899327A", "publication_date": "2013-01-30", "applicant": "清华大学深圳研究生院;深圳南粤药业有限公司;苏州吉玛基因股份有限公司", "address": "518055 广东省深圳市南山区西丽镇深圳大学城清华校区", "common_applicants": "", "inventor": "张雅鸥;王纠;何杰;谢伟东;许乃寒;李颖;张佩琢;苏宏瑞;万刚;吕青;卢锦华;柳忠义", "international_application": "", "international_publishing": "", "into_the_country_date": "", "patent_agencies": "北京纪凯知识产权代理有限公司 11245", "agents": "关畅;王慧凤", "original_application_number": "", "province_code": "44", "summary": "本发明公开了一种小核酸及其在制备抑制单纯疱疹病毒(HSV)和人类乳头瘤病毒(HPV)病毒的药物中的应用。该小核酸是双链核酸,其正义链序列为序列表中序列5,其反义链序列为序列表中序列6。该小核酸可制成温度敏感型凝胶制剂。用所述小核酸温度敏感型凝胶制剂注入(或喷入)阴道或口腔等不规则腔道,能抑制上述腔道和宫颈上皮细胞中宿主B2M基因的表达和或外来的HPV?E7的表达,从而能用于抑制HSV-1病毒的人类乳头瘤病毒(HPV)感染和/或治疗HVP所致宫颈癌前病变。", "sovereignty_item": "一种小核酸,是双链核酸,其正义链序列为序列表中序列5,其反义链序列为序列表中序列6。", "page": "25", "main_classification_number": "C12N15/113", "patent_classification_Numbers": "C12N15/113;A61K48/00;A61K9/06;A61P35/00;A61P31/20;A61P31/22" }
