前言
根据我的另一篇文章：如何将照片美化，DPED机器学习开源项目安装使用 | 机器学习_阿良的博客-CSDN博客
发现DPED项目需要命令化执行且需要图片目录作为处理源。我还是把项目魔改了一下，简化项目结构，合并到一个python代码中。
模型文件比较大，我提供了下载地址，下载后放到项目对应目录即可。
Github仓库地址：github地址
项目说明
项目结构

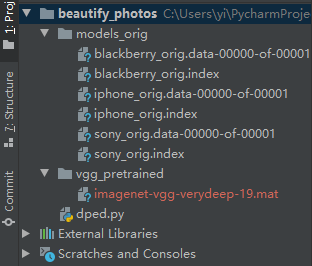

看一下项目的结构，如下图：
其中模型文件下载地址：https://pan.baidu.com/s/1IUm8xz5dhh8iW_bLWfihPQ 提取码：TUAN
将imagenet-vgg-verydeep-19.mat下载后放在vgg_pretrained目录中。
环境依赖可以直接参考：Python实现替换照片人物背景，精细到头发丝（附上代码） | 机器学习_阿良的博客-CSDN博客
数据准备
我准备了一张测试图如下：
魔改代码
不废话了，上核心代码。
#!/usr/bin/env python
# -*- coding: utf-8 -*-
# @Time : 2021/11/27 13:48
# @Author : 剑客阿良_ALiang
# @Site :
# @File : dped.py
# python test_model.py model=iphone_orig dped_dir=dped/ test_subset=full
# iteration=all resolution=orig use_gpu=true
import imageio
from PIL import Image
import numpy as np
import tensorflow as tf
import os
import sys
import scipy.stats as st
import uuid
from functools import reduce
# ---------------------- hy add 2 ----------------------
def log10(x):
numerator = tf.compat.v1.log(x)
denominator = tf.compat.v1.log(tf.constant(10, dtype=numerator.dtype))
return numerator / denominator
def _tensor_size(tensor):
from operator import mul
return reduce(mul, (d.value for d in tensor.get_shape()[1:]), 1)
def gauss_kernel(kernlen=21, nsig=3, channels=1):
interval = (2 * nsig + 1.) / (kernlen)
x = np.linspace(-nsig - interval / 2., nsig + interval / 2., kernlen + 1)
kern1d = np.diff(st.norm.cdf(x))
kernel_raw = np.sqrt(np.outer(kern1d, kern1d))
kernel = kernel_raw / kernel_raw.sum()
out_filter = np.array(kernel, dtype=np.float32)
out_filter = out_filter.reshape((kernlen, kernlen, 1, 1))
out_filter = np.repeat(out_filter, channels, axis=2)
return out_filter
def blur(x):
kernel_var = gauss_kernel(21, 3, 3)
return tf.nn.depthwise_conv2d(x, kernel_var, [1, 1, 1, 1], padding='SAME')
def process_command_args(arguments):
# specifying default parameters
batch_size = 50
train_size = 30000
learning_rate = 5e-4
num_train_iters = 20000
w_content = 10
w_color = 0.5
w_texture = 1
w_tv = 2000
dped_dir = 'dped/'
vgg_dir = 'vgg_pretrained/imagenet-vgg-verydeep-19.mat'
eval_step = 1000
phone = ""
for args in arguments:
if args.startswith("model"):
phone = args.split("=")[1]
if args.startswith("batch_size"):
batch_size = int(args.split("=")[1])
if args.startswith("train_size"):
train_size = int(args.split("=")[1])
if args.startswith("learning_rate"):
learning_rate = float(args.split("=")[1])
if args.startswith("num_train_iters"):
num_train_iters = int(args.split("=")[1])
# -----------------------------------
if args.startswith("w_content"):
w_content = float(args.split("=")[1])
if args.startswith("w_color"):
w_color = float(args.split("=")[1])
if args.startswith("w_texture"):
w_texture = float(args.split("=")[1])
if args.startswith("w_tv"):
w_tv = float(args.split("=")[1])
# -----------------------------------
if args.startswith("dped_dir"):
dped_dir = args.split("=")[1]
if args.startswith("vgg_dir"):
vgg_dir = args.split("=")[1]
if args.startswith("eval_step"):
eval_step = int(args.split("=")[1])
if phone == "":
print("\nPlease specify the camera model by running the script with the following parameter:\n")
print("python train_model.py model={iphone,blackberry,sony}\n")
sys.exit()
if phone not in ["iphone", "sony", "blackberry"]:
print("\nPlease specify the correct camera model:\n")
print("python train_model.py model={iphone,blackberry,sony}\n")
sys.exit()
print("\nThe following parameters will be applied for CNN training:\n")
print("Phone model:", phone)
print("Batch size:", batch_size)
print("Learning rate:", learning_rate)
print("Training iterations:", str(num_train_iters))
print()
print("Content loss:", w_content)
print("Color loss:", w_color)
print("Texture loss:", w_texture)
print("Total variation loss:", str(w_tv))
print()
print("Path to DPED dataset:", dped_dir)
print("Path to VGG-19 network:", vgg_dir)
print("Evaluation step:", str(eval_step))
print()
return phone, batch_size, train_size, learning_rate, num_train_iters, \
w_content, w_color, w_texture, w_tv, \
dped_dir, vgg_dir, eval_step
def process_test_model_args(arguments):
phone = ""
dped_dir = 'dped/'
test_subset = "small"
iteration = "all"
resolution = "orig"
use_gpu = "true"
for args in arguments:
if args.startswith("model"):
phone = args.split("=")[1]
if args.startswith("dped_dir"):
dped_dir = args.split("=")[1]
if args.startswith("test_subset"):
test_subset = args.split("=")[1]
if args.startswith("iteration"):
iteration = args.split("=")[1]
if args.startswith("resolution"):
resolution = args.split("=")[1]
if args.startswith("use_gpu"):
use_gpu = args.split("=")[1]
if phone == "":
print("\nPlease specify the model by running the script with the following parameter:\n")
print(
"python test_model.py model={iphone,blackberry,sony,iphone_orig,blackberry_orig,sony_orig}\n")
sys.exit()
return phone, dped_dir, test_subset, iteration, resolution, use_gpu
def get_resolutions():
# IMAGE_HEIGHT, IMAGE_WIDTH
res_sizes = {}
res_sizes["iphone"] = [1536, 2048]
res_sizes["iphone_orig"] = [1536, 2048]
res_sizes["blackberry"] = [1560, 2080]
res_sizes["blackberry_orig"] = [1560, 2080]
res_sizes["sony"] = [1944, 2592]
res_sizes["sony_orig"] = [1944, 2592]
res_sizes["high"] = [1260, 1680]
res_sizes["medium"] = [1024, 1366]
res_sizes["small"] = [768, 1024]
res_sizes["tiny"] = [600, 800]
return res_sizes
def get_specified_res(res_sizes, phone, resolution):
if resolution == "orig":
IMAGE_HEIGHT = res_sizes[phone][0]
IMAGE_WIDTH = res_sizes[phone][1]
else:
IMAGE_HEIGHT = res_sizes[resolution][0]
IMAGE_WIDTH = res_sizes[resolution][1]
IMAGE_SIZE = IMAGE_WIDTH * IMAGE_HEIGHT * 3
return IMAGE_HEIGHT, IMAGE_WIDTH, IMAGE_SIZE
def extract_crop(image, resolution, phone, res_sizes):
if resolution == "orig":
return image
else:
x_up = int((res_sizes[phone][1] - res_sizes[resolution][1]) / 2)
y_up = int((res_sizes[phone][0] - res_sizes[resolution][0]) / 2)
x_down = x_up + res_sizes[resolution][1]
y_down = y_up + res_sizes[resolution][0]
return image[y_up: y_down, x_up: x_down, :]
# ---------------------- hy add 1 ----------------------
def resnet(input_image):
with tf.compat.v1.variable_scope("generator"):
W1 = weight_variable([9, 9, 3, 64], name="W1")
b1 = bias_variable([64], name="b1")
c1 = tf.nn.relu(conv2d(input_image, W1) + b1)
# residual 1
W2 = weight_variable([3, 3, 64, 64], name="W2")
b2 = bias_variable([64], name="b2")
c2 = tf.nn.relu(_instance_norm(conv2d(c1, W2) + b2))
W3 = weight_variable([3, 3, 64, 64], name="W3")
b3 = bias_variable([64], name="b3")
c3 = tf.nn.relu(_instance_norm(conv2d(c2, W3) + b3)) + c1
# residual 2
W4 = weight_variable([3, 3, 64, 64], name="W4")
b4 = bias_variable([64], name="b4")
c4 = tf.nn.relu(_instance_norm(conv2d(c3, W4) + b4))
W5 = weight_variable([3, 3, 64, 64], name="W5")
b5 = bias_variable([64], name="b5")
c5 = tf.nn.relu(_instance_norm(conv2d(c4, W5) + b5)) + c3
# residual 3
W6 = weight_variable([3, 3, 64, 64], name="W6")
b6 = bias_variable([64], name="b6")
c6 = tf.nn.relu(_instance_norm(conv2d(c5, W6) + b6))
W7 = weight_variable([3, 3, 64, 64], name="W7")
b7 = bias_variable([64], name="b7")
c7 = tf.nn.relu(_instance_norm(conv2d(c6, W7) + b7)) + c5
# residual 4
W8 = weight_variable([3, 3, 64, 64], name="W8")
b8 = bias_variable([64], name="b8")
c8 = tf.nn.relu(_instance_norm(conv2d(c7, W8) + b8))
W9 = weight_variable([3, 3, 64, 64], name="W9")
b9 = bias_variable([64], name="b9")
c9 = tf.nn.relu(_instance_norm(conv2d(c8, W9) + b9)) + c7
# Convolutional
W10 = weight_variable([3, 3, 64, 64], name="W10")
b10 = bias_variable([64], name="b10")
c10 = tf.nn.relu(conv2d(c9, W10) + b10)
W11 = weight_variable([3, 3, 64, 64], name="W11")
b11 = bias_variable([64], name="b11")
c11 = tf.nn.relu(conv2d(c10, W11) + b11)
# Final
W12 = weight_variable([9, 9, 64, 3], name="W12")
b12 = bias_variable([3], name="b12")
enhanced = tf.nn.tanh(conv2d(c11, W12) + b12) * 0.58 + 0.5
return enhanced
def adversarial(image_):
with tf.compat.v1.variable_scope("discriminator"):
conv1 = _conv_layer(image_, 48, 11, 4, batch_nn=False)
conv2 = _conv_layer(conv1, 128, 5, 2)
conv3 = _conv_layer(conv2, 192, 3, 1)
conv4 = _conv_layer(conv3, 192, 3, 1)
conv5 = _conv_layer(conv4, 128, 3, 2)
flat_size = 128 * 7 * 7
conv5_flat = tf.reshape(conv5, [-1, flat_size])
W_fc = tf.Variable(tf.compat.v1.truncated_normal(
[flat_size, 1024], stddev=0.01))
bias_fc = tf.Variable(tf.constant(0.01, shape=[1024]))
fc = leaky_relu(tf.matmul(conv5_flat, W_fc) + bias_fc)
W_out = tf.Variable(
tf.compat.v1.truncated_normal([1024, 2], stddev=0.01))
bias_out = tf.Variable(tf.constant(0.01, shape=[2]))
adv_out = tf.nn.softmax(tf.matmul(fc, W_out) + bias_out)
return adv_out
def weight_variable(shape, name):
initial = tf.compat.v1.truncated_normal(shape, stddev=0.01)
return tf.Variable(initial, name=name)
def bias_variable(shape, name):
initial = tf.constant(0.01, shape=shape)
return tf.Variable(initial, name=name)
def conv2d(x, W):
return tf.nn.conv2d(x, W, strides=[1, 1, 1, 1], padding='SAME')
def leaky_relu(x, alpha=0.2):
return tf.maximum(alpha * x, x)
def _conv_layer(net, num_filters, filter_size, strides, batch_nn=True):
weights_init = _conv_init_vars(net, num_filters, filter_size)
strides_shape = [1, strides, strides, 1]
bias = tf.Variable(tf.constant(0.01, shape=[num_filters]))
net = tf.nn.conv2d(net, weights_init, strides_shape, padding='SAME') + bias
net = leaky_relu(net)
if batch_nn:
net = _instance_norm(net)
return net
def _instance_norm(net):
batch, rows, cols, channels = [i.value for i in net.get_shape()]
var_shape = [channels]
mu, sigma_sq = tf.compat.v1.nn.moments(net, [1, 2], keepdims=True)
shift = tf.Variable(tf.zeros(var_shape))
scale = tf.Variable(tf.ones(var_shape))
epsilon = 1e-3
normalized = (net - mu) / (sigma_sq + epsilon) ** (.5)
return scale * normalized + shift
def _conv_init_vars(net, out_channels, filter_size, transpose=False):
_, rows, cols, in_channels = [i.value for i in net.get_shape()]
if not transpose:
weights_shape = [filter_size, filter_size, in_channels, out_channels]
else:
weights_shape = [filter_size, filter_size, out_channels, in_channels]
weights_init = tf.Variable(
tf.compat.v1.truncated_normal(
weights_shape,
stddev=0.01,
seed=1),
dtype=tf.float32)
return weights_init
# ---------------------- hy add 0 ----------------------
def beautify(pic_path: str, output_dir: str, gpu='1'):
tf.compat.v1.disable_v2_behavior()
# process command arguments
phone = "iphone_orig"
test_subset = "full"
iteration = "all"
resolution = "orig"
# get all available image resolutions
res_sizes = get_resolutions()
# get the specified image resolution
IMAGE_HEIGHT, IMAGE_WIDTH, IMAGE_SIZE = get_specified_res(
res_sizes, phone, resolution)
if gpu == '1':
use_gpu = 'true'
else:
use_gpu = 'false'
# disable gpu if specified
config = tf.compat.v1.ConfigProto(
device_count={'GPU': 0}) if use_gpu == "false" else None
# create placeholders for input images
x_ = tf.compat.v1.placeholder(tf.float32, [None, IMAGE_SIZE])
x_image = tf.reshape(x_, [-1, IMAGE_HEIGHT, IMAGE_WIDTH, 3])
# generate enhanced image
enhanced = resnet(x_image)
with tf.compat.v1.Session(config=config) as sess:
# test_dir = dped_dir + phone.replace("_orig",
# "") + "/test_data/full_size_test_images/"
# test_photos = [f for f in os.listdir(
# test_dir) if os.path.isfile(test_dir + f)]
test_photos = [pic_path]
if test_subset == "small":
# use five first images only
test_photos = test_photos[0:5]
if phone.endswith("_orig"):
# load pre-trained model
saver = tf.compat.v1.train.Saver()
saver.restore(sess, "models_orig/" + phone)
for photo in test_photos:
# load training image and crop it if necessary
new_pic_name = uuid.uuid4()
print(
"Testing original " +
phone.replace(
"_orig",
"") +
" model, processing image " +
photo)
image = np.float16(np.array(
Image.fromarray(imageio.imread(photo)).resize([res_sizes[phone][1], res_sizes[phone][0]]))) / 255
image_crop = extract_crop(
image, resolution, phone, res_sizes)
image_crop_2d = np.reshape(image_crop, [1, IMAGE_SIZE])
# get enhanced image
enhanced_2d = sess.run(enhanced, feed_dict={x_: image_crop_2d})
enhanced_image = np.reshape(
enhanced_2d, [IMAGE_HEIGHT, IMAGE_WIDTH, 3])
before_after = np.hstack((image_crop, enhanced_image))
photo_name = photo.rsplit(".", 1)[0]
# save the results as .png images
# imageio.imwrite(
# "visual_results/" +
# phone +
# "_" +
# photo_name +
# "_enhanced.png",
# enhanced_image)
imageio.imwrite(os.path.join(output_dir, '{}.png'.format(new_pic_name)), enhanced_image)
# imageio.imwrite(
# "visual_results/" +
# phone +
# "_" +
# photo_name +
# "_before_after.png",
# before_after)
imageio.imwrite(os.path.join(output_dir, '{}_before_after.png'.format(new_pic_name)), before_after)
return os.path.join(output_dir, '{}.png'.format(new_pic_name))
else:
num_saved_models = int(len([f for f in os.listdir(
"models_orig/") if f.startswith(phone + "_iteration")]) / 2)
if iteration == "all":
iteration = np.arange(1, num_saved_models) * 1000
else:
iteration = [int(iteration)]
for i in iteration:
# load pre-trained model
saver = tf.compat.v1.train.Saver()
saver.restore(
sess,
"models_orig/" +
phone +
"_iteration_" +
str(i) +
".ckpt")
for photo in test_photos:
# load training image and crop it if necessary
new_pic_name = uuid.uuid4()
print("iteration " + str(i) + ", processing image " + photo)
image = np.float16(np.array(
Image.fromarray(imageio.imread(photo)).resize(
[res_sizes[phone][1], res_sizes[phone][0]]))) / 255
image_crop = extract_crop(
image, resolution, phone, res_sizes)
image_crop_2d = np.reshape(image_crop, [1, IMAGE_SIZE])
# get enhanced image
enhanced_2d = sess.run(enhanced, feed_dict={x_: image_crop_2d})
enhanced_image = np.reshape(
enhanced_2d, [IMAGE_HEIGHT, IMAGE_WIDTH, 3])
before_after = np.hstack((image_crop, enhanced_image))
photo_name = photo.rsplit(".", 1)[0]
# save the results as .png images
# imageio.imwrite(
# "visual_results/" +
# phone +
# "_" +
# photo_name +
# "_iteration_" +
# str(i) +
# "_enhanced.png",
# enhanced_image)
imageio.imwrite(os.path.join(output_dir, '{}.png'.format(new_pic_name)), enhanced_image)
# imageio.imwrite(
# "visual_results/" +
# phone +
# "_" +
# photo_name +
# "_iteration_" +
# str(i) +
# "_before_after.png",
# before_after)
imageio.imwrite(os.path.join(output_dir, '{}_before_after.png'.format(new_pic_name)), before_after)
return os.path.join(output_dir, '{}.png'.format(new_pic_name))
if __name__ == '__main__':
print(beautify('C:/Users/yi/Desktop/6.jpg', 'result/'))
代码说明
1、beautify方法有3个参数，分别为图片地址、输出目录、是否使用gpu（默认使用）。
2、输出的图片有两张，为了文件名不重复，使用uuid作为文件名，后缀带_before_after为对比图。
3、没有对文件做校验，如果需要可以自行添加。

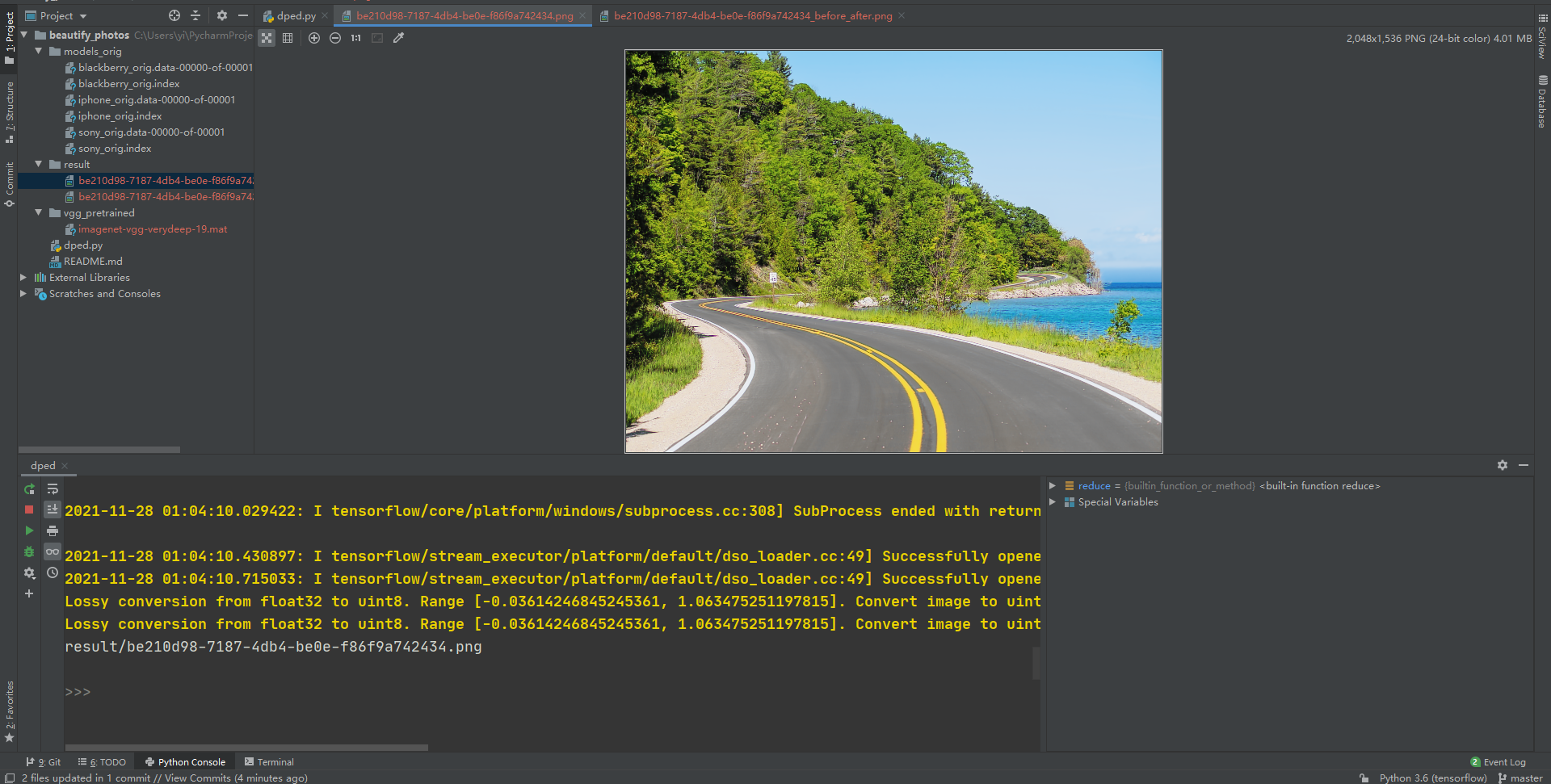

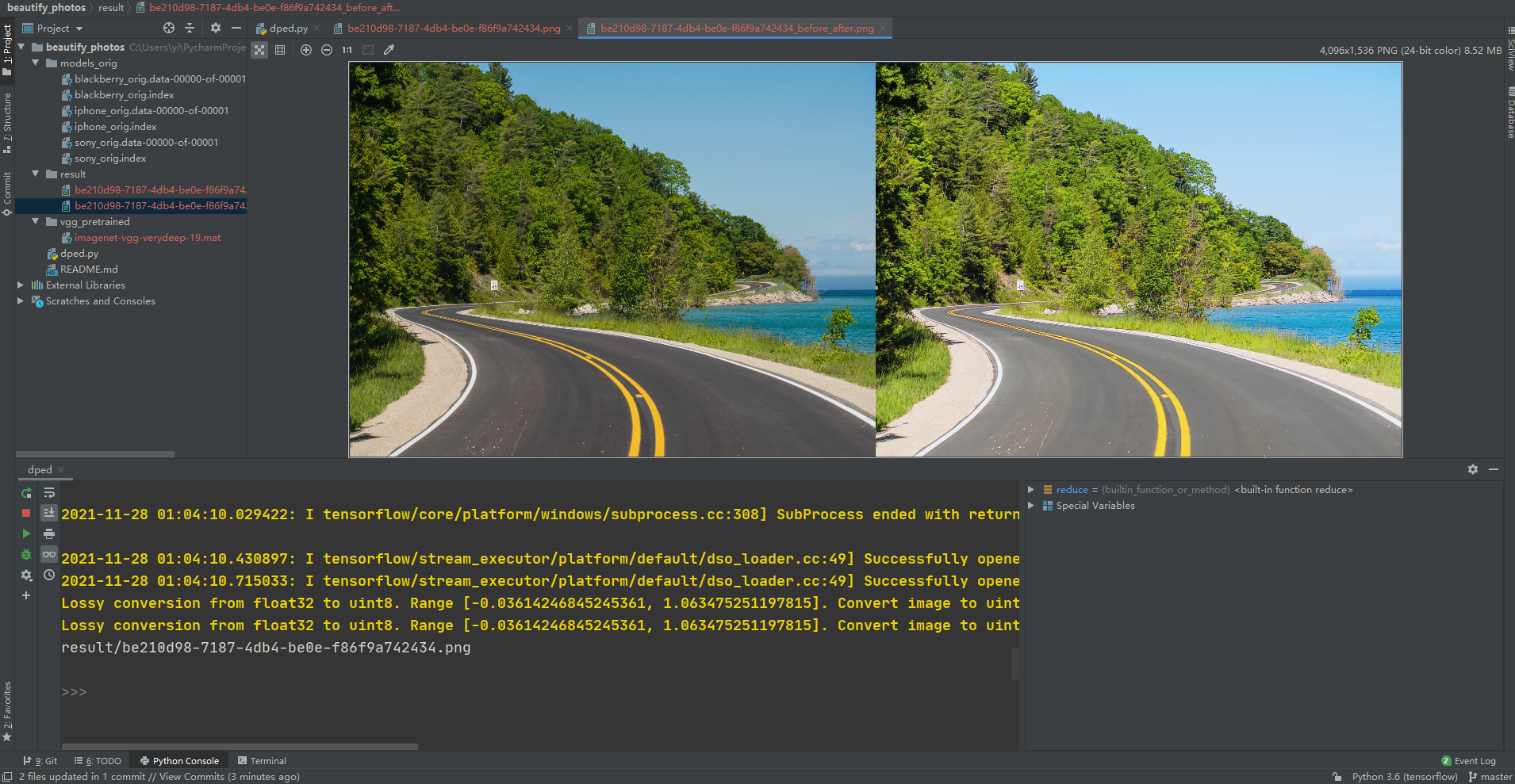

验证一下效果
怎么样？很炫吧。
总结
研究这个项目还是很有意思的，记录与分享又是另一种快乐。以前以为自己是个开朗的人，现在细细翻阅自己的人生，更多的是宁静与孤独。以前曾看书看马尔克斯的一句话：在变老的路上，与其抗拒孤独，不如学会享受孤独。所以孤独没什么不好的，沉浸在程序的另一个世界里，就是另一个心情。
分享：
生命从来不曾离开过孤独而独立存在。无论是我们出生、我们成长、我们相爱还是我们成功失败，直到最后的最后，孤独犹如影子一样存在于生命一隅。——《马尔克斯》
如果本文对你有用的话，请点个赞吧，谢谢！
神龙|纯净稳定代理IP免费测试>>>>>>>>天启|企业级代理IP免费测试>>>>>>>>IPIPGO|全球住宅代理IP免费测试
